Power engineering – From our own production we supply performance-adjusted fans for the cooling of generators, large motors and converters, among others in switchgears and wind power plants. We design and implement custom products according to your specific wishes on short notice. Environmentally aware and future-oriented!

RC-T-G4D-200-CD-04-14-m.Fl.Radial blower RC-T G4D 200-CD 04-14 m.Fl.UL, single inlet with spiral casing

  • Illustration with inlet flange

  • Motor construction type: three-phase current motor

  • Spiral casing: galvanized sheet steel, colour-coated

  • Impeller wheel: galvanized sheet steel

  • available:
    - in various RAL colour tones
    - with electrical connector

Data sheet RC-G4D 200-CD 04-14 m.Fl. UL engl
RC-T-G4D-200-CD-04-14-m.L.URadial blower RC-T G4D 200-CD 04-14 m.L.UL, single inlet with spiral casing

  • Illustration with mounting straps and gasket on the inlet side

  • Motor construction type: three-phase current motor

  • Spiral casing: galvanized sheet steel, colour-coated

  • Impeller wheel: galvanized sheet steel

  • available:
    - in various RAL colour tones
    - with electrical connector
    - with inlet flange and flap valve

Data sheet RC-G4D 200-CD 04-14 m.L. UL engl
RC-T-G4D-200-CL-12-15-m.VS.Radial blower RC-T G4D 200-CL 12-15 m.VS.UL, single inlet with spiral casing

  • Illustration with flap valve

  • Motor construction type: three-phase current motor

  • Spiral casing: galvanized sheet steel, colour-coated

  • Impeller wheel: galvanized sheet steel, enameled black

  • available:
    - in various RAL colour tones
    - with electrical connector

Data sheet RC-G4D 200-CL 12-15 m.VS. UL engl
RC-T-R3G-500-ECRadial blower RC – R3G 500 EC…, single inlet

  • Motor construction type: EC motor

  • Casing: galvanized sheet steel, colour-coated

  • Impeller wheel: aluminium sheet

  • All models are supplied with mating connector and transport lugs.

  • available:
    - with flap valve
    - in various IP protection classes
    - in various RAL colour tones

Data Sheet RC-R3G-500-EC..V
DKHM-500-4-4-AM-STDRadial blower RC-T DKHM 500-4-4 AM-STD…, singleinlet

  • Motor construction type: three-phase current motor, maintenance-free with integrated thermal contacts

  • Casing: galvanized sheet steel, colour-coated,

  • Impeller wheel, backward curved: aluminium sheet (ALMg3)

  • All models are supplied with mating connector and transport lugs.

  • available:
    - with flap valve
    - in various IP protection classes
    - in various RAL colour tones

Data sheet RC-DKHM 500-4-4 AM-STD engl
DKHM-500-4SW-155-6HF-2Radial blower RC-T DKHM 500-4SW-155-6HF, with free-wheeling impeller

  • Motor construction type: external rotor motor, three-phase current

  • Casing: galvanized sheet steel, colour-coated

  • Impeller wheel: aluminium sheet

  • All models are supplied with mating connector and transport lugs.

  • available:
    - in various RAL colour tones
    - with electrical connector

Data sheet DKHM500-4SW-155-6HF-021 engl
RC-T-DKE-225-(280)-(315)-(3Motor impeller RC-T DKE 280-4 / 6, with motor suspension flange

  • Motor construction type: voltage-controllable external rotor motor with thermal contacts, three-phase current,

  • in normal and special voltages

  • Motor suspension flange: galvanized sheet steel, colour-coated,

  • Impeller, forward curved: galvanized sheet steel, colour-coated

  • available:
    - in various RAL colour tones
    - with electrical connector
    - in impeller sizes Ø 225, 280, 315, 355 mm
    - number of poles: two, four and six
    - in voltage ranges 230 - 400V, 290 - 500 V, 400 - 690 V (50/60 Hz)
    - pole-changeable
    - as complete fan with special casing
RC-T-DKE-225-(280)-(315)-(3Motor impeller RC-T DKE 315-4 / 6, with motor suspension flange

  • Motor construction type: voltage-controllable external rotor motor with thermal contacts, three-phase current,

  • in normal and special voltages

  • Motor suspension flange: galvanized sheet steel, colour-coated,

  • Impeller, forward curved: galvanized sheet steel, colour-coated

  • available:
    - in various RAL colour tones
    - with electrical connector
    - in impeller sizes Ø 225, 280, 315, 355 mm
    - number of poles: two, four and six
    - in voltage ranges 230 - 400V, 290 - 500 V, 400 - 690 V (50/60 Hz)
    - pole-changeable
    - as complete fan with special casing
RC-T-DKE-225-(280)-(315)-(3Motor impeller RC-T DKE 355-4 / 6 , with motor suspension flange

  • Motor construction type: voltage-controllable external rotor motor with thermal contacts, three-phase current,

  • in normal and special voltages

  • Motor suspension flange: galvanized sheet steel, colour-coated,

  • Impeller, forward curved: galvanized sheet steel, colour-coated

  • available:
    - in various RAL colour tones
    - with electrical connector
    - in impeller sizes Ø 225, 280, 315, 355 mm
    - number of poles: two, four and six
    - in voltage ranges 230 - 400V, 290 - 500 V, 400 - 690 V (50/60 Hz)
    - pole-changeable
    - as complete fan with special casing
RC-T-DRAD-315-4-575-VRadial fan RC-T DRAD 315-4 575 V

  • Double inlet, with additional acoustic boards

  • Model: available in various RAL colour tones

  • Motor construction type: voltage-controllable external rotor motor, three-phase current

  • Spiral casing: galvanized sheet steel, colour-coated

  • Impeller: galvanized sheet steel

  • Direction of rotation: counter-clockwise (viewed from cable outlet side)

  • Direction of movement: double inlet

  • Mounting position: rotor axis horizontal

Data sheet RC-DRAD 315-4 575 V_engl
RC-T-DRAD-315-4-S-690-VRadial fan RC-T DRAD 315-4 S 690 V

  • Double inlet

  • Model: available in various RAL colour tones

  • Motor construction type: voltage-controllable external rotor motor, three-phase current

  • Spiral casing: galvanized sheet steel, colour-coated

  • Impeller: galvanized sheet steel

  • Direction of rotation: counter-clockwise (viewed from cable outlet side)

  • Direction of movement: double inlet

  • Mounting position: rotor axis horizontal

Data sheet RC-DRAD 315-4 S 690 V_engl
400-6_S_575_V_60_Hz_IP10klRadial fan RC-DRAD 400-6-502-575V

  • Double inlet

  • Model: available:
    - in various RAL colour tones
    - with motor protection type IP54
    - with nominal voltage 400 V / 50 Hz, 690 V / 60 Hz
    Motor construction type: voltage-controllable external rotor motor, three-phase current
    Spiral casing: galvanized sheet steel, colour-coated
    Impeller: galvanized sheet steel

Data_sheet_RC-DRAD_400-6_S_502_575_V__Y__60_Hz_IP10_eng
RC-DRAD-400-6-S-690-V-60-HzRC-DRAD 400-6 S 3~690 V/60 Hz

  • Insulation class: F

  • Motor protection type: IP10

  • Cable length: 4.3 m

  • Impeller material: galvanized sheet steel

  • Motor suspension: galvanized steel profile, plastic-coated RAL 5003

  • Material spiral casing, inlet cones and protection guards: galvanized sheet steel, plastic-coated RAL 5003

  • Motor construction type: voltage-controllable external rotor motor, three-phase current, with thermal contacts

  • Direction of rotation: counter-clockwise (viewed from cable outlet side)

  • Direction of movement: double inlet

  • Mounting position: rotor axis horizontal

  • Protection guards mounted on both sides

  • available:
    - in various RAL colour tones
    - with motor protection type IP54
    - with nominal voltage 400 V / 50 Hz, 575 V / 60 Hz

Data_sheet_RC-DRAD_400-6_S_502_690_V__Y__60_Hz_IP10
RC-DKHR-220-4-DachventilatoRC-DKHR 220-4 roof fan module

  • Motor protection type: IP 44; insulation class F

  • Connecting cable : 1.5 m long

  • Certifications: UL, CSA, CCC, CE of electric components

  • Operation mode: S1

  • Protection class I

  • Bearings: maintenance-free ball bearings

  • Expected service life: >40,000 hours of operation

  • ambient temperature as reference value

  • (depending on marginal conditions)

  • Motor construction type: AC external rotor motor, motor protection via temperature monitors

  • Casing: galvanized sheet-steel, colour-coated RAL 7032

  • Impeller: plastic impeller, fibre-glass reinforced, 11 backward curved blades

  • Rotor, lacquered black

  • Direction of rotation: clockwise (viewed on rotor)

  • Direction of movement: rotor inlet

  • Mounting position: rotor axis vertical, air intake from the bottom
RC-DCTLL-200-2-400-V-und-50RC-DCTLL 200-2 400 V / RC-DCTLL 200-2 500 V

  • Impeller material: sheet steel, lacquered black

  • Direction of rotation: clockwise viewed from the rotor

  • Direction of movement: inlet via the webs

  • Number of impeller blades: 5

  • Mounting position: axis horizontal and axis vertical, rotor down

  • Flange casing material: galvanized sheet steel, powder-coated RAL 9005

  • Bearing: maintenance-free ball bearings

  • Insulation class: B

  • Protection type: IP54

  • Cable length: 350 mm, from casing

  • Electrical connection: cable end crimps

  • Model: available with protection guard and electrical connector

Data sheet RC-DCTLL 200-2 400 V_engl

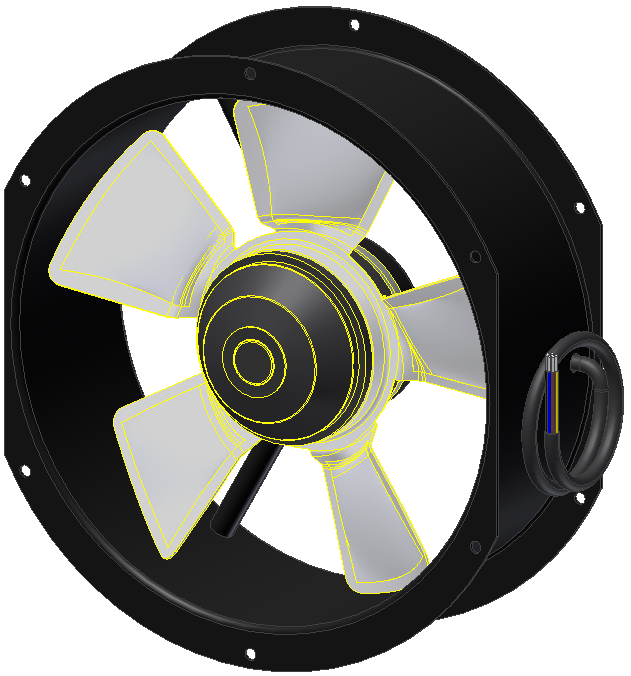

RC-DCTLL-250-2-230-400VRC-DCTLL 250-2 230/400 V

  • Impeller material: sheet steel, lacquered black

  • Direction of rotation: clockwise viewed from rotor

  • Direction of movement: inlet via the webs

  • Number of impeller blades: 5

  • Mounting position: axis horizontal and axis vertical, rotor down

  • Flange casing material: galvanized sheet steel, powder-coated RAL 9005

  • Bearing: maintenance-free ball bearings

  • Insulation class: B

  • Protection type: IP54

  • Cable length: 350 mm, from casing

  • Electrical connection: cable end crimps

  • Model: available with protection guard and electrical connector

Data sheet RC-DCTLL 250-2 230-400 V_engl
